Nb Electrode 6x12x1.5×1.5 Diamond Type Niobium Expanded Metal Mesh

Niobium (Nb Electrode) Expanded Metal Mesh with specific dimensions and a diamond pattern.

• Material: Niobium (Nb) 99.9% Purity– This is a highly corrosion-resistant, refractory metal often used in high-temperature applications, such as aerospace and electronics.

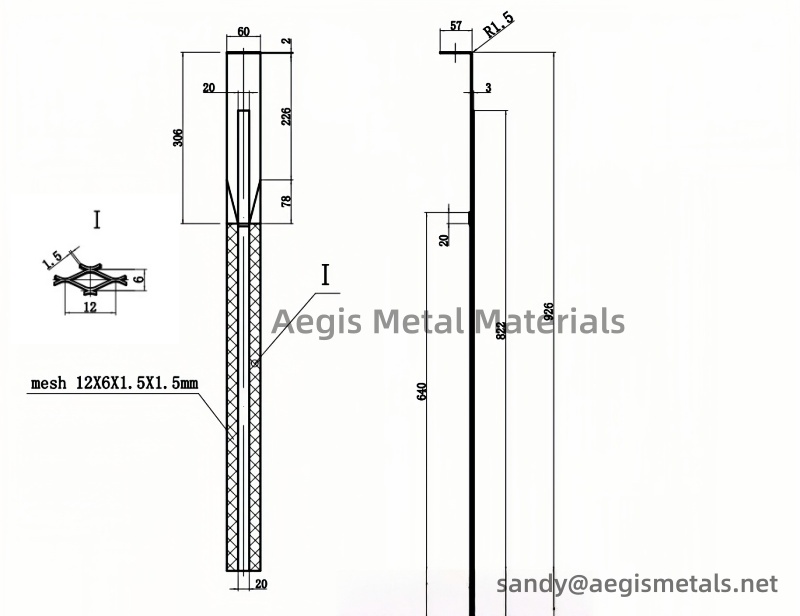

• Dimensions:6x12x1.5×1.5 – This could describe the mesh pattern or structure, where:

• The first 6×12 = SWD X LWD = which indicate the mesh’s size in terms of the width and length of the openings (in mm) of the niobioum electrode mesh.

• The 1.5×1.5 = thickness x threads = which refer to the thickness of the metal or the leg size of the expanded metal mesh, which is also 1.5mm in both directions (if this is referring to the leg dimensions of the expanded mesh).

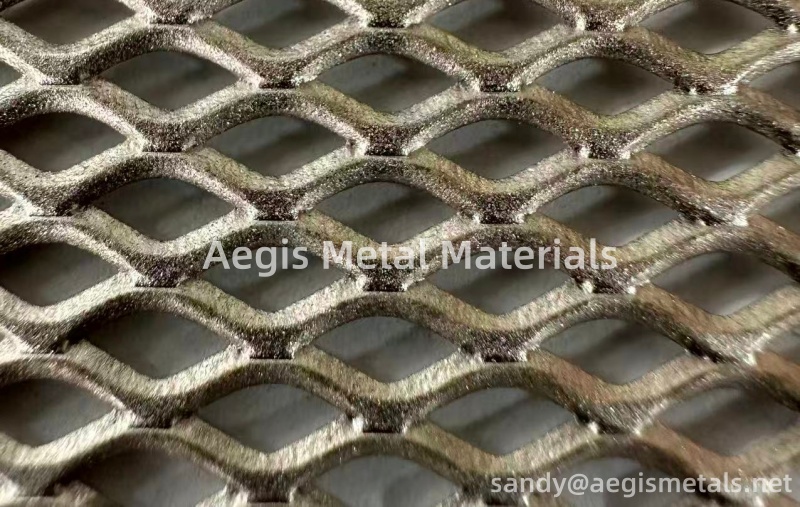

• Type: Diamond – This refers to the shape of the holes in the mesh, which form a diamond-like pattern, typical for many expanded metals as they provide both strength and flexibility.

The expanded type Niobium Mesh is often used in high-performance applications where the combination of strength, heat resistance, and corrosion resistance is critical.

Niobium electrodes, especially in expanded metal mesh form, are used in high-performance applications like fuel cells, electrolyzers, capacitors, corrosion protection, chemical processing, high-temperature reactors, energy storage, biomedical devices, and superconducting technologies due to niobium’s excellent corrosion resistance, high-temperature stability, and electrochemical properties.

More information and other sizes requsted, contact us freely.
