Металлическая сетка из никелевых сплавов

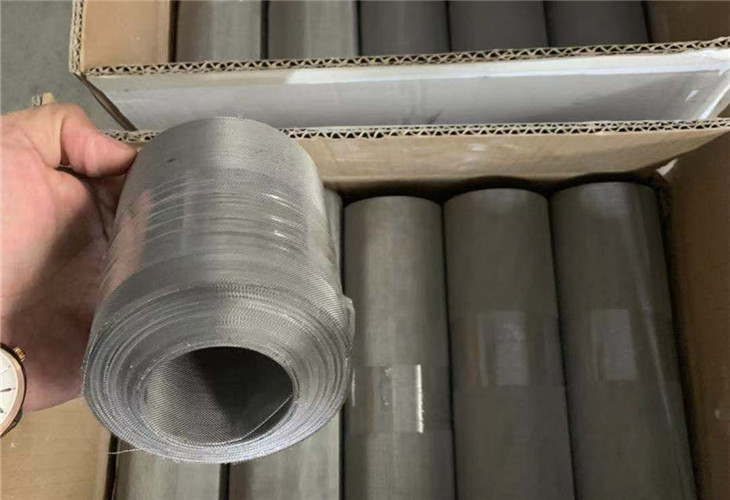

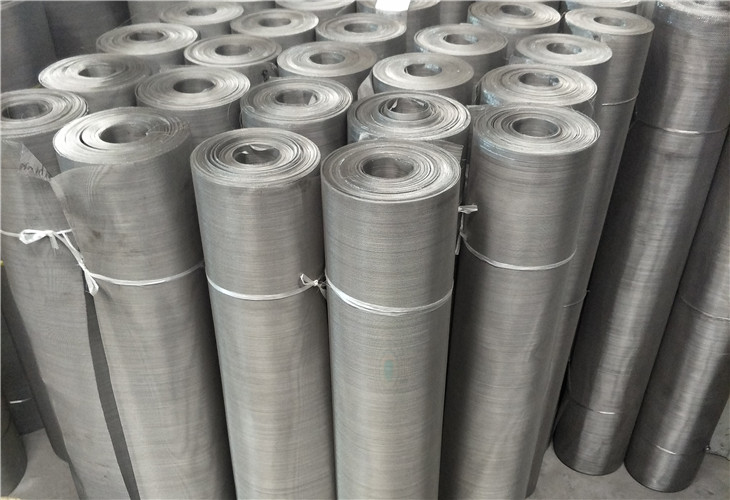

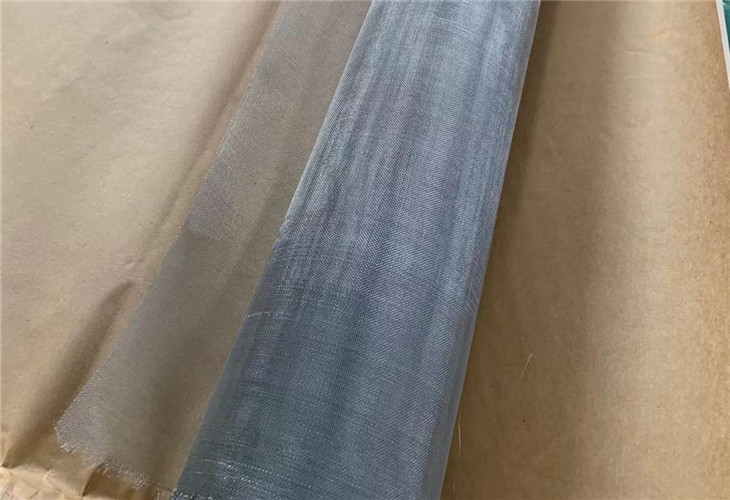

Проволочная сетка Inconel 800/800H/800HT

Подробные спецификации
Химическая Composition(%)
Ni Cr Fe C Al Ti Al+Ti
Сплав 800 30-35 19-23 ≥39.5 0-0.1 0.15-0.6 0.15-0.6 0.3-1.2
Сплав 800H 30-35 19-23 ≥39.5 0.05-0.1 0.15-0.6 0.15-0.6 0.3-1.2
Сплав 800HT 30-35 19-23 ≥39.5 0.06-0.1 0.25-0.6 0.25-0.6 0.85-1.2
  • Weaving type:plain,twill,crimped.
  • Mesh count:1 to 200 mesh.
Особенности

Some characteristics of Сплав 800 wire cloth which dictate its use are:

  • High temperature strength
  • High creep rupture strength
  • Resistant to oxidation and carburization in high temperature environments
  • Good corrosion resistance in many acidic environments
  • Good resistance to many sulfur-containing atmospheres
Применение
  • Ethylene furnace quench boilers
  • Hydrocarbon cracking
  • Valves, fittings and other components exposed to corrosive attack from 1100-1800° F
  • Industrial furnaces
  • Heat-treating equipment
  • Химическая and petrochemical processing
  • Super-heater and re-heaters in power plants
  • Pressure vessels
  • Heat exchangers
