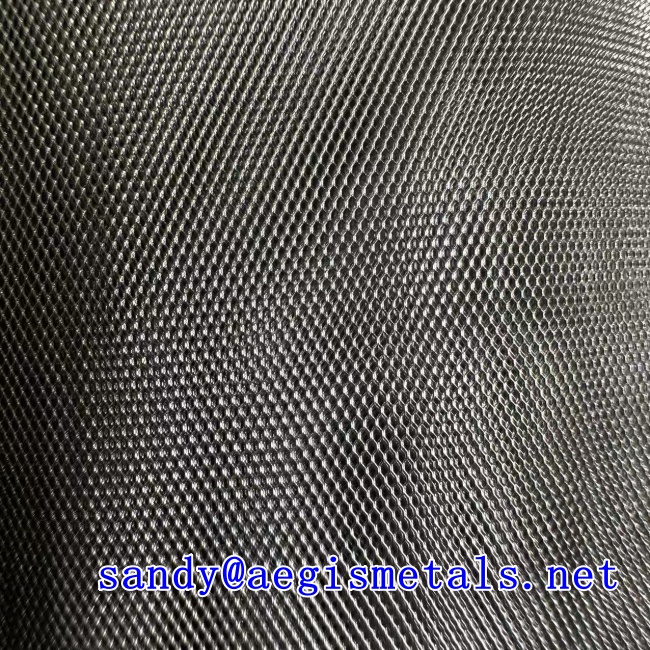

Fe-Ni alloy 1J30/1J31/1J32 Expanded Metal Mesh

1J31 wire mesh : Stands out for its temperature stability (magnetic performance fluctuates <10% in -50°C to +150°C) and dimensional accuracy, crucial for sensors and miniature devices sensitive to environmental changes.

1J32 metal mesh : Excels in ultra-low coercivity and high maximum permeability, catering to high-precision scenarios like aerospace-grade shielding and high-frequency signal processing where minimal energy loss is essential.

1J30 alloy mesh: Emphasizes rapid magnetic saturation in low fields, making it ideal for components requiring high initial permeability, such as low-voltage transformers and relays.

Detailed Specifications

Here is a comparative table for 1J30, 1J31, and 1J32 iron-nickel alloy meshes:

Parameter	1J30 Iron-Nickel Alloy Mesh	1J31 Iron-Nickel Alloy Mesh	1J32 Iron-Nickel Alloy Mesh
Composition	– Ni content: ~30% (mass fraction) – Main elements: Fe, Ni – Trace elements: Mn, Si, C, P, S (controlled impurities)	– Ni content: 30%–32% – Added elements: 3%–5% Co, 0.5%–1.0% Mo – Trace elements: Si, Mn (≤0.5%), C (≤0.03%), S/P (≤0.02%)	– Ni content: 32%–35% – Added elements: 1.5%–2.0% Mo, 0.3%–0.6% Si/Mn – Trace elements: C (≤0.03%), S/P (≤0.02%)

Features

Mechanical Properties	– Density: 8.3 g/cm³ – Melting point: 1,420–1,450 °C – Tensile strength (cold-worked): Not specified – Elongation (annealed): Not specified	– Density: Not specified – Melting point: Not specified – Tensile strength (cold-worked): 800–1,000 MPa – Elongation (annealed): ≥25%	– Density: Not specified – Melting point: Not specified – Tensile strength: ≥500 MPa – Yield strength: ≥300 MPa – Elongation: ≥30%
Magnetic Properties	– Initial permeability (μi): ≥7,500 – Maximum permeability: ≥35,000 – Curie temperature: ~480 °C – Coercivity (Hc): Not specified	– Initial permeability (μi): ≥25 mH/m – Saturation magnetic induction (Bs): 0.8–1.0 T – Coercivity (Hc): ≤20 A/m – Magnetic stability: <10% fluctuation at -50°C to +150°C	– Initial permeability (μi): ≥25 mH/m (typical 30–40 mH/m) – Maximum permeability: 150–200 mH/m – Coercivity (Hc): ≤8 A/m – Saturation magnetic induction (Bs): ~0.8 T
Electrical & Thermal Properties	– Resistivity: 0.55 μΩ·m – Thermal conductivity: 20 W/m·K	– Resistivity: Not specified – Thermal conductivity: Not specified	– Resistivity: Not specified – Thermal conductivity: Not specified

Applications

Typical Applications	– Transformer cores – Electromagnetic relays – Aerospace and communication precision components	– Precision instruments – Sensors – Miniature electromagnetic devices (wire form)	– Aerospace equipment – Electromagnetic shielding devices – High-frequency transformers – Precision instruments
Key Features	– High initial and maximum permeability – Rapid magnetic saturation in low fields	– Enhanced permeability with Co addition – Good dimensional accuracy and temperature stability	– Ultra-low coercivity and high maximum permeability – Excellent soft magnetic properties for high-precision applications
