Nickel Alloy Metal Mesh

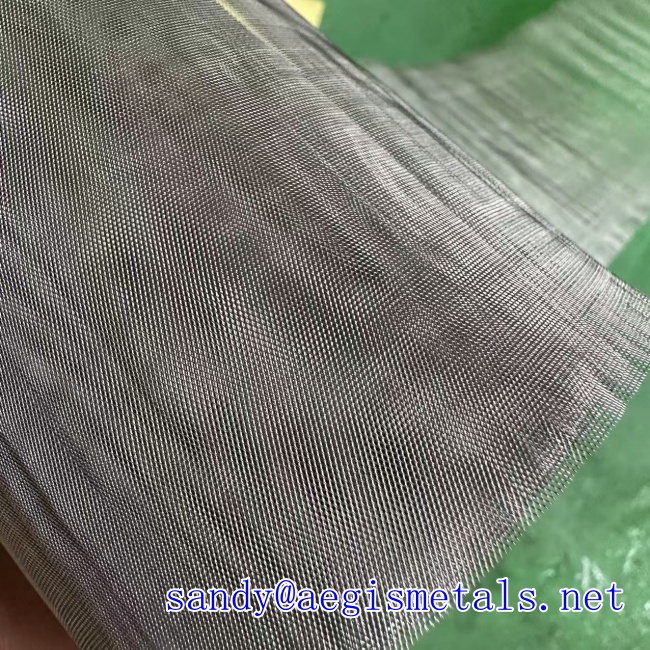

Iron-Nickel 1J50 Soft magnetic expanded metal mesh is fabricated from 1J50 Fe-Ni soft magnetic alloy through stamping and stretching, forming a diamond-shaped perforated structure. It integrates the soft magnetic properties of high permeability and low coercivity with the advantages of metal mesh, Widely used in electromagnetic shielding, magnetic circuit support, and magnetic field homogenization, this mesh combines magnetic performance with functional versatility for applications in electronic devices, transformers, sensors, and more.
| Element | Content (Mass Fraction) |
|---|---|
| Nickel (Ni) | 49.0–51.0% |
| Iron (Fe) | Balance |
| Carbon (C) | ≤0.03% |
| Silicon (Si) | ≤0.30% |
| Manganese (Mn) | 0.30–0.80% |
| Sulfur (S) | ≤0.020% |
| Phosphorus (P) | ≤0.020% |
High magnetic permeability (initial permeability μi ≥ 3,000, maximum permeability μmax ≥ 20,000)
Low coercivity (< 40 A/m), ideal for low-frequency magnetic field applications
Expanded metal mesh structure: formed by slitting and stretching metal sheets, featuring:
Ij50 Alloy Expanded metal Mesh has good soft magnetic properties, thermal stability and machining properties, suitable for manufacturing high-precision electrical components. It is widely used in fields such as electronics, communications, computers and automobiles.
(1) Magnetic properties: 1J50 alloy has excellent soft magnetic properties, high magnetic permeability, low hysteresis loss, and high magnetization intensity. It can be used to manufacture high-precision electrical components such as inductors, transformers, and motors.
(2)Thermal stability: 1J50 alloy has excellent thermal stability and can work at high temperatures, making it suitable for manufacturing electrical components used at high temperatures.
(3)Processing performance: 1J50 alloy is easy to cold and hot work, and can be processed into materials of different shapes through rolling, stretching, extrusion, and other methods.
(4)Corrosion resistance: 1J50 alloy has good corrosion resistance at room temperature, but it is prone to rusting in humid environments and requires protective measures.
1J50 Fe-Ni Soft Magnetic Alloy Expanded Metal Mesh combines the material’s soft magnetic properties with the structural advantages of mesh, mainly used for:
– **Electromagnetic shielding ventilation components**: Utilizes high magnetic permeability to shield electromagnetic interference while the mesh structure enables equipment ventilation and heat dissipation (e.g., electronic cabinets, transformer enclosures).
– **Lightweight magnetic circuit supports**: Serves as a support framework for iron cores or magnetic components, reducing weight while maintaining magnetic permeability, applied in relays and transformers.
– **Magnetic field homogenization components**: Guides magnetic field distribution through the mesh structure to enhance the uniformity and sensitivity of sensors and magnetic amplifiers.
– **Anti-interference filtering structures**: Functions as a filtering mesh in high-frequency circuits to suppress electromagnetic noise, integrating structural strength and magnetic performance.
