Material: H65 H60 H62 Raw Brass Sheet/Plate/Foils

Thickness of raw sheets:  from 0.1mm 0.2mm, 0.3mm…0.5mm, 0.8mm, 1.0mm, ….

Strand Width (SW): The width of the metal “strand” between holes. It depaneds on the diamond hole size and request overall thickness.

Diamond Hole(SWD x LWD):  from minunium 0.4*0.8mm 0.5*1mm 1*2mm 2*3mm ….. to Max 50*100mm

Short Way of Diamond (SWD): The distance between two identical points on the diamond measured in the short direction. This is often used to describe the “mesh size.”

Long Way of Diamond (LWD): The distance in the long direction.

Sheet Size: The finished width x length dimensions of the expanded panel.  such as 200x200mm 500x500mm 500x1000mm,,, Max width is 1200mm now.

• Attractive Appearance: The golden brass color adds a premium, decorative, or antique look.

• Ventilation & Transparency: Allows for airflow, light, and partial visibility while providing a barrier.

• Strength & Rigidity: The expanded process creates a lightweight but strong material.

• Slip Resistance: The raised pattern provides excellent grip underfoot.

• Easy to Fabricate: Can be cut, curved, and formed relatively easily.

• Corrosion Resistant: Suitable for many environments, though it will develop a patina over time outdoors unless coated.

1. Decorative & Architectural:

• Room Dividers and Partitions

• Balustrades and Railing Infill Panels

• Ceiling and Wall Cladding

• Lamp Shades and Light Fixtures

• Furniture Design (cabinet fronts, table inlays)

• Vent Covers and Grilles (where appearance matters)

2. Functional & Industrial:

• Filters and Screens (in chemical, fuel, or air systems)

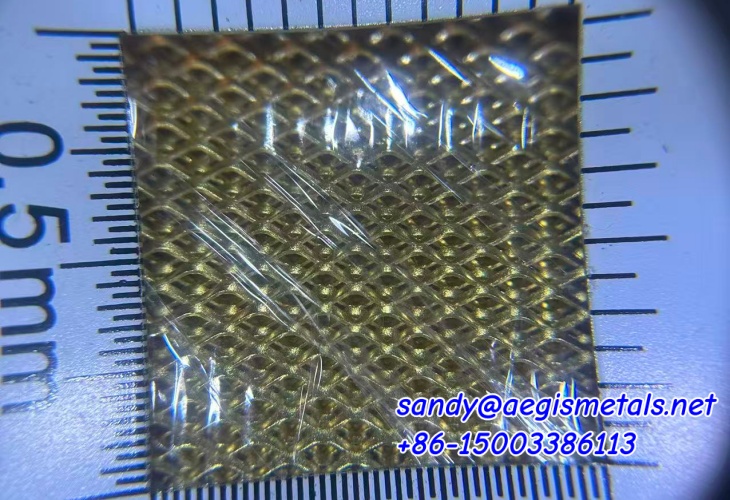

• EMI/RFI Shielding (due to brass’s conductivity) such as the provided shown picture size 2x3mm hole, 0.3mm thickness, 0.6mm overall mesh thickness.

• Speaker Grilles (acoustic and decorative)

• Safety Guards for machinery (where non-magnetic properties are needed)

• Trays and Baskets in plating or processing lines.

3. Security & Fencing:

• Decorative security screens for windows or doors.

• Enclosures for equipment that require ventilation.
