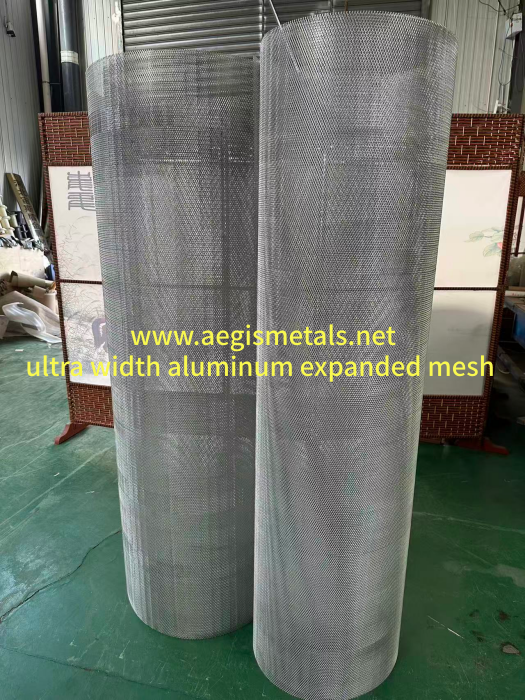

1700x3300mm Aluminum Expanded Mesh

1700x3300mm ultra width & ultra big sheet size aluminum expanded mesh. Custom big size aluminum diamond hole expanded mesh sheet, made by slitting & stretching solid aluminum alloy plate without any welds. Available in raised or flattened type, diamond hole pattern. Multiple surface finishes including PVDF coating, powder coating and anodizing. Lightweight, high strength & excellent anti-corrosion, widely used for architectural facade, ceiling, partition, sunshade and safety barrier. Alloy grade 1060/3003/5052 optional, thickness, strand width and mesh pitch customizable.

Detailed Specifications

Aluminum alloy grades: 1060 pure aluminum, 3003 rust proof aluminum, 5052 aluminum magnesium alloy; Lightweight, natural antioxidant and rust resistant
SWD

5MM

LWD 10mm

Strand Width
1.0mm

Plate Thickness
0.9mm

Raised / Flattened
Flattened type into 0.9mm

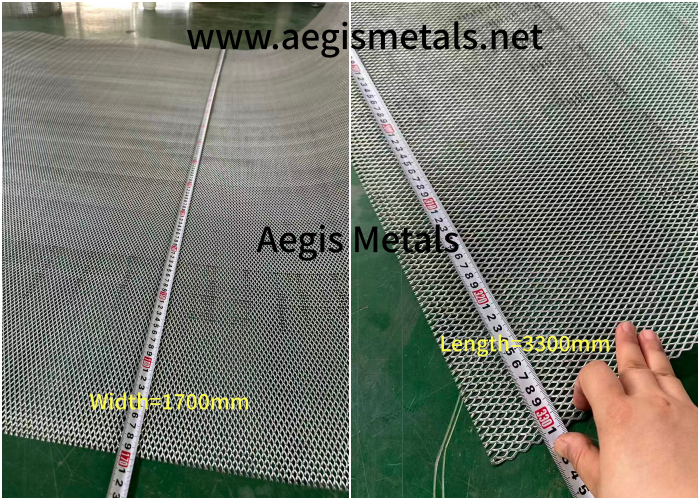

Plate sheet width
1700mm

Plate sheet length
3300mm

Features

Integrated stamping and stretching forming, no welding points, no splicing, high structural strength;
Lightweight, 2/3 lighter than steel plate expansion mesh, reducing building loads;
Ventilation, transparency, and gradual perspective, with both decorative and shading functions, as well as protective features;
Salt spray resistance, moisture resistance, long-term use in humid coastal environments without corrosion

Applications

Building facade curtain wall, exterior sunshade grille, lobby partition
Large span suspended ceilings and decorative background walls in commercial/office buildings
Balcony guardrails, staircase protection, equipment protective covers
Ventilation cover plate, filter grille, landscape decoration panel
