| Material | High-temperature resistance FeCral mesh or 310s Stainless steel mesh screen |
| Layers | 2 layers, one is fine, the other is coarse. |
| Diameter or overall | 5″ |
| Height | 0.25″ |
| Holes |
Mounting holes pre-cut , and 4 holes around. |
Deep Process Filters

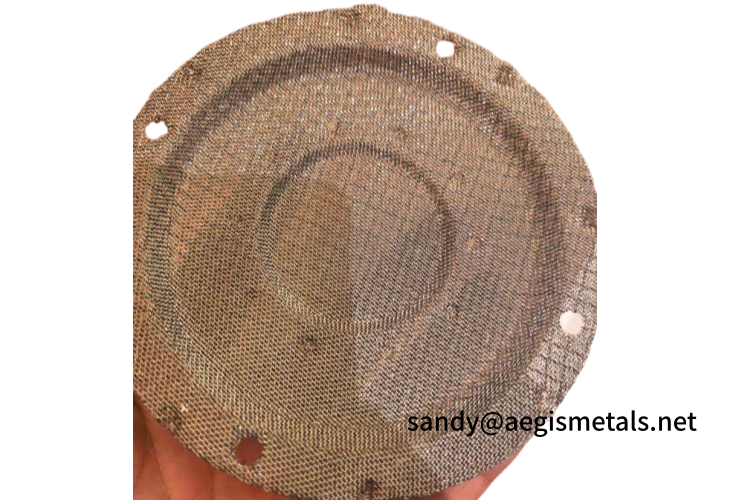

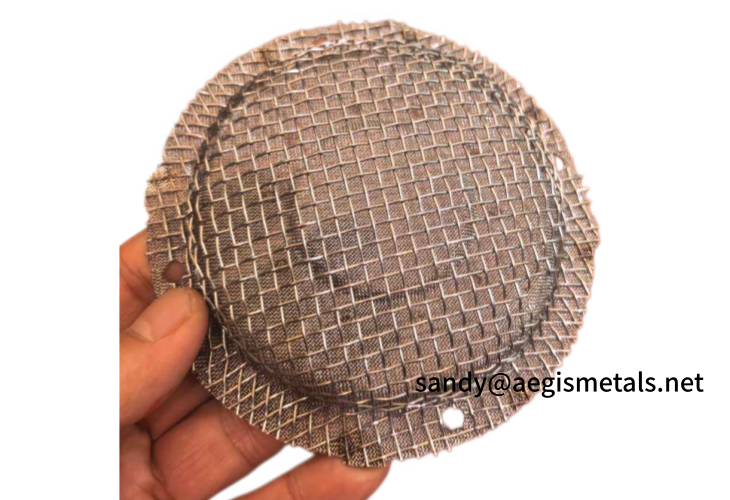

Tank Top Heaters Grid Screen Kits is referring to a filter made of FeCraL wire mesh screen, which with 2 layers, one fine mesh and one corase mesh. all the materials with high-temperature resistance. The screen kits are widely applied to the Tank Tops models MH12; MH12C; MH12T; MH12CS; MH12TS; MH24T; MH24TS; MH42T.
A grid screen kit typically refers to a metal mesh or expanded metal guard that:
Protects the heater’s combustion area from debris, wind, or accidental contact.
Prevents large objects from entering the hot exhaust or burner area.
Improves safety by reducing the risk of fire or burns, especially in crowded or dusty environments.
| Material | High-temperature resistance FeCral mesh or 310s Stainless steel mesh screen |
| Layers | 2 layers, one is fine, the other is coarse. |
| Diameter or overall | 5″ |
| Height | 0.25″ |
| Holes |
Mounting holes pre-cut , and 4 holes around. |
(1) Perfect fit into the Tank Top and easy to install.
(2) Positive heat output, and distributes heat evenly.
(3) a good replacement part at a reasonable price.
(4) Long use-time, durability of the screens.

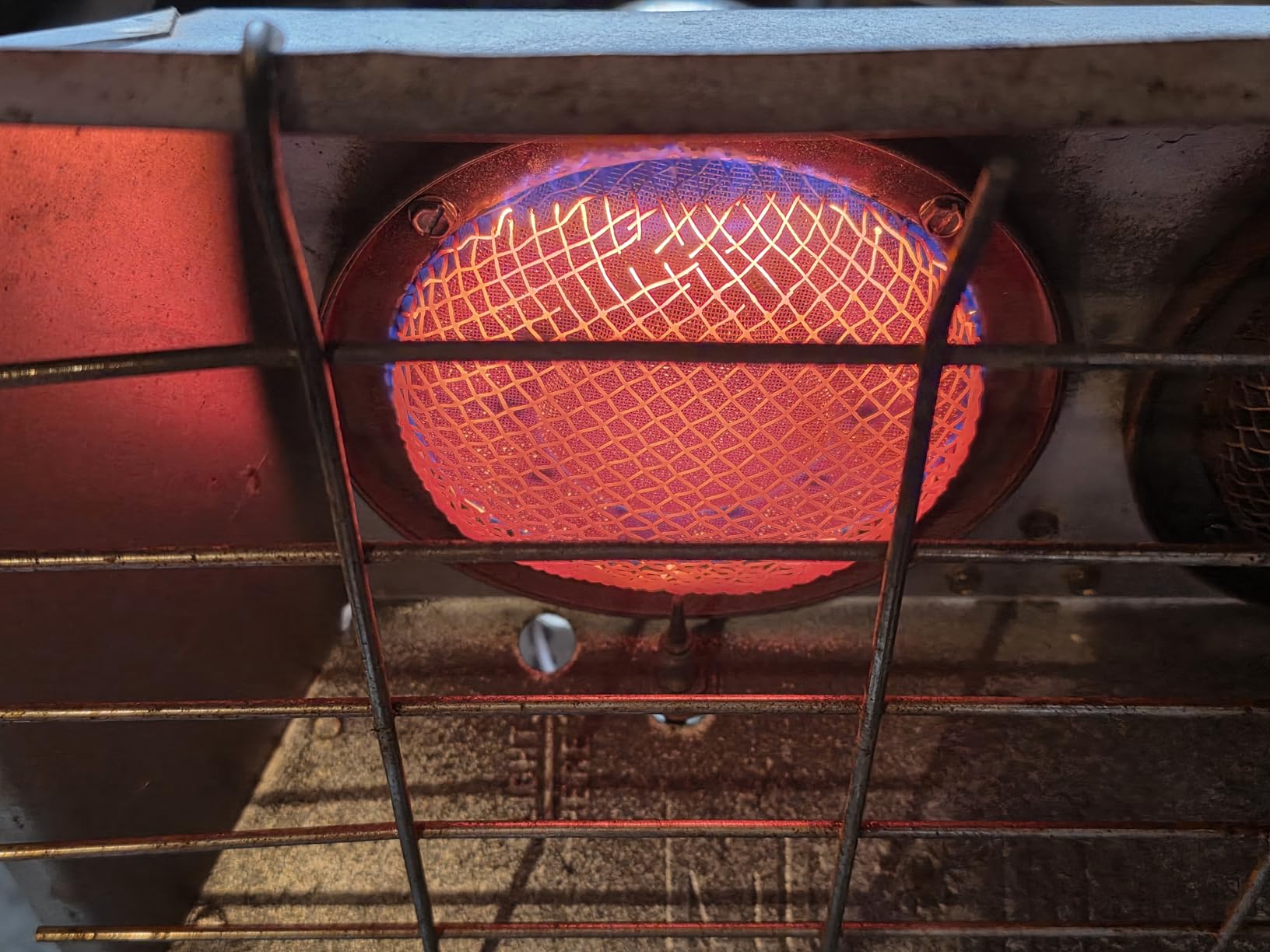

1. Infrared heating carrier: propane flame burns the metal mesh, and the mesh body stores heat and releases infrared radiation for heating, which is the core heating component of the heater;
2. Flame stability protection: block the spread of open flames, avoid direct contact of flames with external protective nets, and reduce the risk of fire;
3. Flame retardant and dustproof: block dust and debris from entering the combustion head to prevent blockage of the combustion holes;

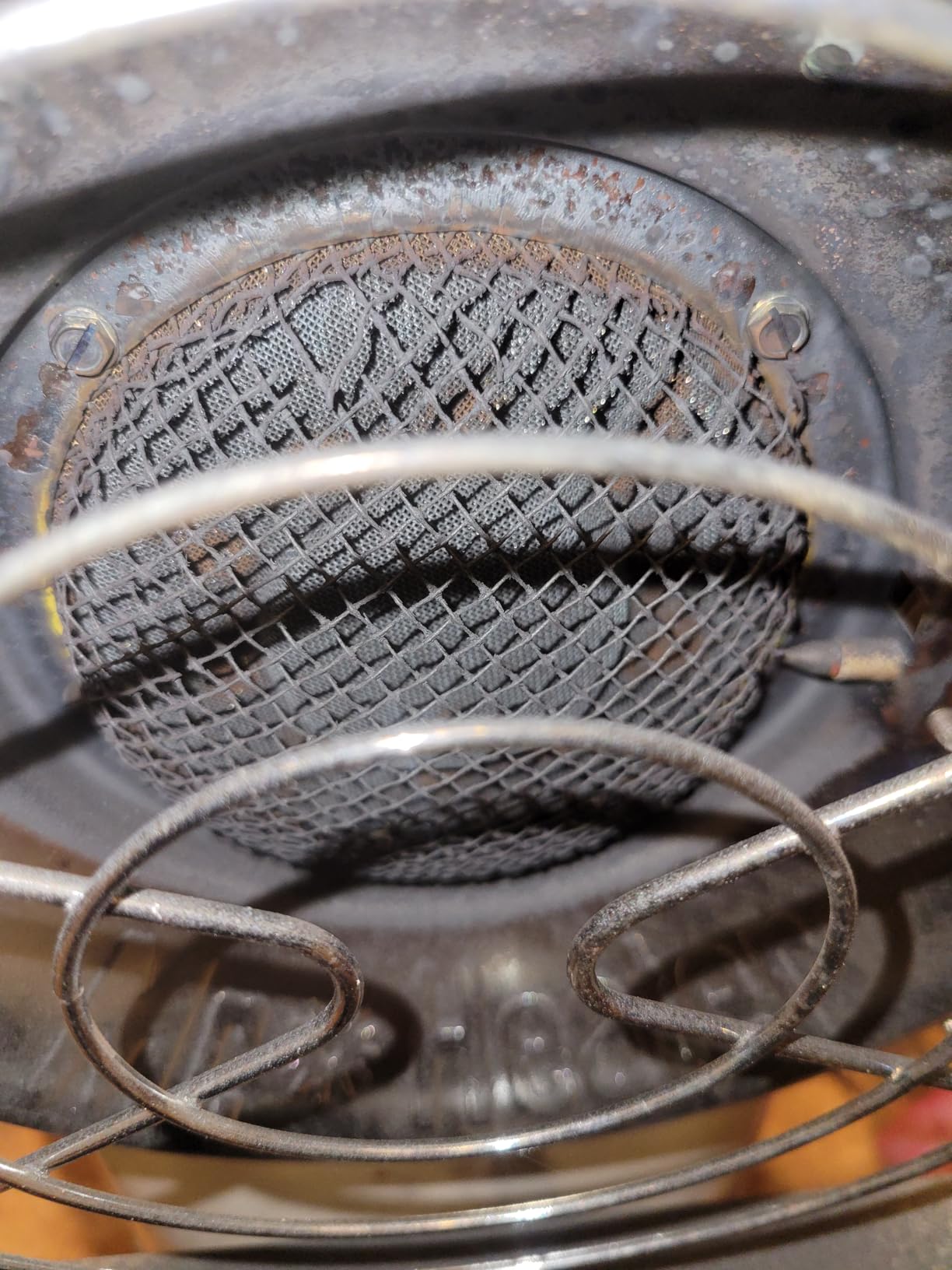

4. Distinguishing explanation: This is the inner side heating net, not the outer side thick iron wire protection of the machine.
